Deburring of oil bores
With X-BORES HEULE advances into uncharted technical territory that has been out of reach so far. By developing the CBD system, HEULE has introduced a new function and work concept.  Bore intersections with a low main bore / cross bore ratio and flat penetration angle become burr free because of a defined cutting process that ensures a complete edge break. In a close cooperation with the customer, our R&D team examines the feasibility and develops a tailor-cut tool for the specific application.

Application situation

Challenge
Classical oil bores with bore diameter Ø5.0 till 10.0 mm
Very complex intersecting bores usually located in toothings or steps
Intersecting bores with a very flat penetration angle

Solution approach
The Cross Bore Tool

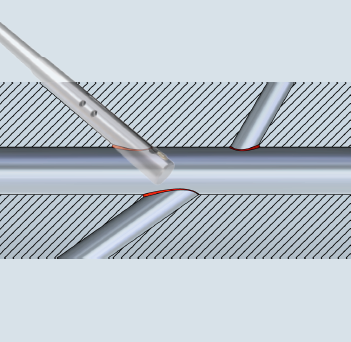

The Cross Bore Deburring Tool (CBD) has been developed to deburr oil bores. The tool penetrates the cross bore and deburrs the bore intersection in an absolute process-safe manner.

What's next?
Have you got an unsolved deburring issue you would like to resolve with us?
Any viable solution begins with a clear description of the application. Please define your demands and expectations in a comprehensive and detailed manner. Please focus therefor on the following important aspects:
Description of the present deburring process
Details of the bore and the application
Description of the environment: Machine, clamping, fixture, spatial conditions, interfering edges
Number of bores to be deburred
Cycle time? Present solution? Present time (Actual/Target)?
Is there any function assigned to the deburred surface?
Description of the desired final result / target description
What has to be observed imperatively when designing the new deburring process?

翻译:来源于百度翻译，仅供参考

油孔去毛刺
借助X-BORES HEULE，HEULE进入了迄今为止尚未涉足的未知技术领域。通过开发CBD系统，HEULE引入了新的功能和工作概念。主孔/十字孔比较低且穿透角平缓的孔交叉点无毛刺，因为规定的切割工艺可确保完全断边。在与客户的密切合作中，我们的研发团队检查了可行性，并为特定应用开发了定制切割工具。
应用情况
挑战
孔径为5.0至10.0 mm的经典机油孔
非常复杂的相交孔通常位于齿或台阶中
穿透角非常平的相交孔
解决方案方法
十字孔工具
十字孔去毛刺工具（CBD）用于去除机油孔的毛刺。工具以绝对过程安全的方式穿透十字孔并去除孔交叉处的毛刺。
接下来是什么？
您有没有想要解决的去毛刺问题？
任何可行的解决方案都从应用程序的清晰描述开始。请全面详细地定义您的需求和期望。因此，请重点关注以下重要方面：
当前去毛刺工艺的描述
孔和应用的详细信息
环境描述：机器、夹具、夹具、空间条件、干涉边缘
要去毛刺的孔数
循环时间提出解决方案？当前时间（实际/目标）？
是否为去毛刺表面指定了任何功能？
所需最终结果/目标描述的描述
在设计新的去毛刺工艺时，必须遵守什么？
